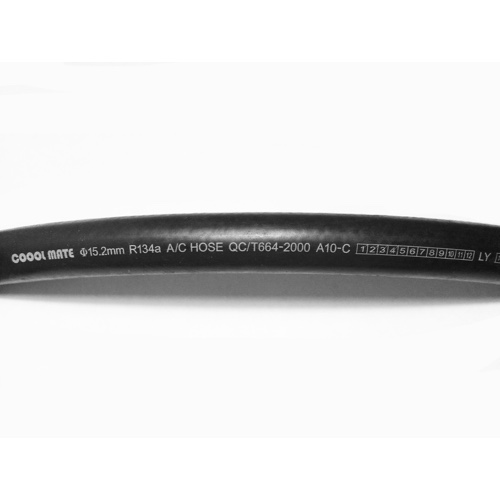

A10 (5/16, 7/16, 1/2, 3/5) Air Conditioner Hose
- Model No.: A10
- Min. Order: 10000 Meters
- Packaging: 50 Meters/Roll
- Delivery Time: 25 Days
- Place of Origin: China
- Brand: Coolmate, OEM, Neutral
- Certificate: ISO9001, DOT, CE
Features
Our A10 (5/16, 7/16, 1/2, 3/5) air conditioner hose consists of inner rubber layer, nylon layer, middle rubber layer, hose carcase, and external rubber layer. This structure enables it to bear a high compression ratio and have advantages of damp proofing, heat resistance, and cold resistance.
Our A10 air conditioner hose is extensively applied to air-conditioning system of cars, trucks, buses, and more. It also can be used with ozone friendly R134a refrigerant.
Specifications
Technical Parameters of A10(5/16, 7/16, 1/2, 3/5) Air Conditioner Hose| HFC-134a A10 | ||||
| Specification | 5/16" | 7/16" | 1/2" | 3/5'' |
| Nominal Diameter | 8 | 11.2 | 13 | 15.2 |
| Interior Diameter and Tolerance | 8 ±0.2 | 11.2 ±0.2 | 13 ±0.2 | 15.2 ±0.2 |
| External Diameter and Tolerance | 15.4 ±0.2 | 18.6 ±0.2 | 21±0.2 | 23.2 ±0.2 |
| Test item | Standard | Test Condition | A10 |
| Permeation Test | Max 40kg/m2/yr | 100℃* 4days | < 11.0 |
| Aging Test | No cracks | 135℃/168h | OK |
| Gold Test | No cracks | -40℃/24h | OK |
| Vacuum Flattening | Max 20% | Absolute pressure 81KP | 3% |
| Length Change | -4 ~ +2% | Pressure2.4±0.2mpa | 1% |
| Bursting Strength | 12.0 Mpa | Pate 12Mpa/40s | >13.7 Mpa |
| Proof Test | No leaking | ||
| Extraction Test | Max 118g/m2 | R134a 70℃/24hr | 40 |
| Cleanliness Test | Max 270mg/m2 | 22.8 | |
| Moisture Ingression | Max 1.11*103g/mm2/gr | Humidity 85% | 0.22 |
Company Advantages
Liangyou Company is an A10 air conditioner hose manufacturer and supplier located in China. We produce refrigerant, compressor oil, freon gas, air conditioner pipe, and more.
In order to supply superior quality and eco-friendly products to our global customers, we purchase raw materials from qualified suppliers, and implement highly efficient management system. All these contribute to low cost of our air conditioner hose, compressor oil, and more.
Due to high quality and competitive prices, our products are popular in many parts of the world. If you are interested in our A10 air conditioner hoses, please feel free to contact us. Our staff looks forward to serving you.
