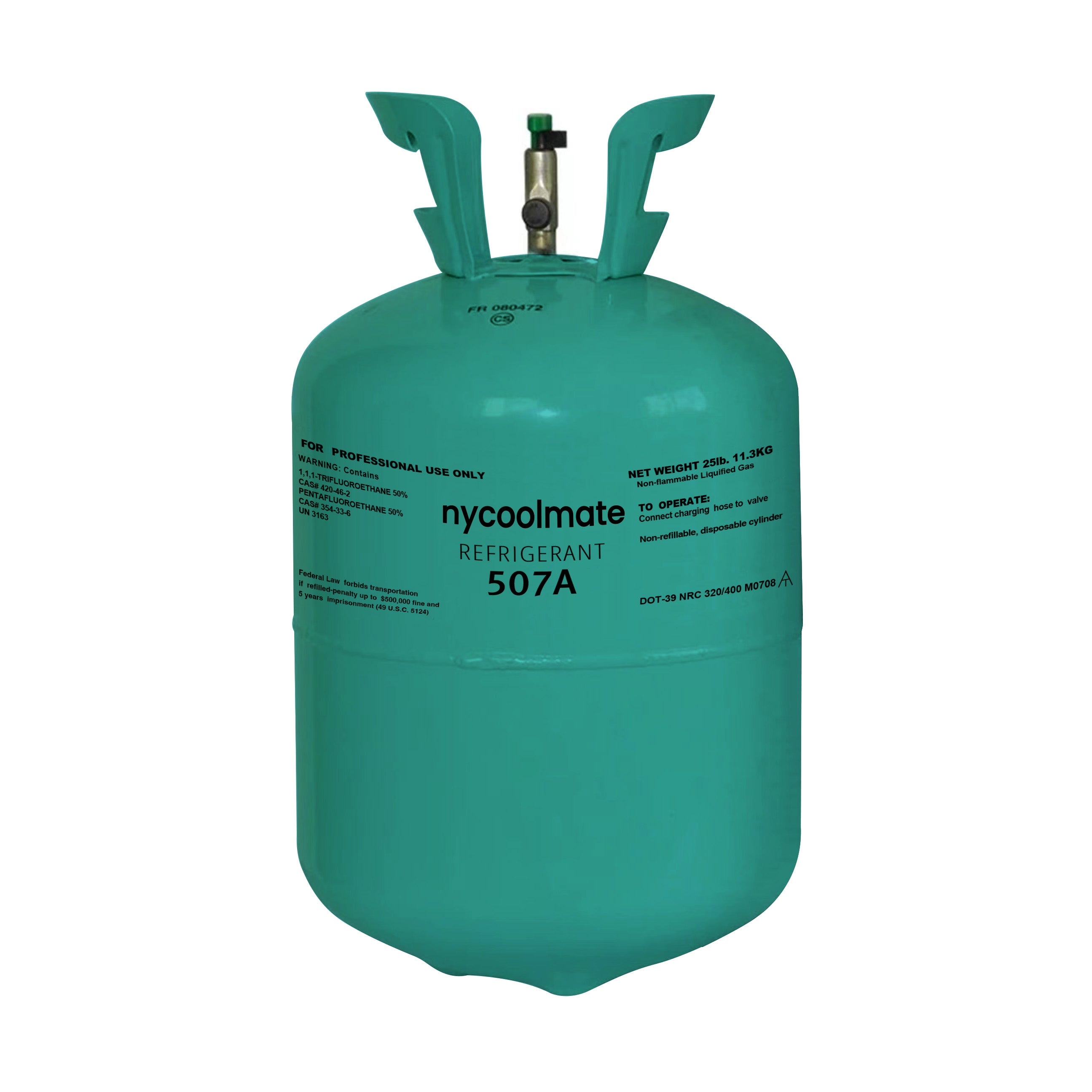

HFC-R507A Refrigerant (High-Performance Azeotropic Replacement for R502)
HFC-R507A is a near-azeotropic blend of R125 and R143a (50%/50%) specifically developed as a high-efficiency, zero-ODP solution for commercial and industrial refrigeration systems. With zero ozone depletion potential and exceptional thermodynamic properties, it has become the industry standard for low and medium-temperature applications where R502 was previously used.
Key Technical Advantages:
Near-azeotropic performance (<1°C temperature glide) ensures system stability and simplified servicing
Superior energy efficiency compared to R502 across all operating conditions
A1 safety classification (non-flammable, non-toxic) per ASHRAE Standard 34
Optimized for low-temperature applications down to -50°C evaporating temperature
Direct compatibility with polyol ester (POE) lubricants
Key Specifications:
| Parameter | Specification |
| Molecular Weight | 98.9 |
| Boiling Point (1atm,°F) | -52.8 |
| Critical Temperature (°F) | 159 |
| Critical Pressure (psia) | 539.51 |
| Purity % ≥ | 99.5 |
| Moisture ppm ≤ | 10 |
| Acidity ppm ≤ | 0.1 |
| Vapor Residue ppm ≤ | 100 |
| Ozone Depletion Potential | 0 |
| Global Warming Potential | 3985 |
Industry-Standard Applications:
Commercial low-temperature refrigeration (supermarket freezers, ice makers)
Industrial process cooling systems
Transport refrigeration units
Blast freezing equipment
Chemical and pharmaceutical cooling processes
