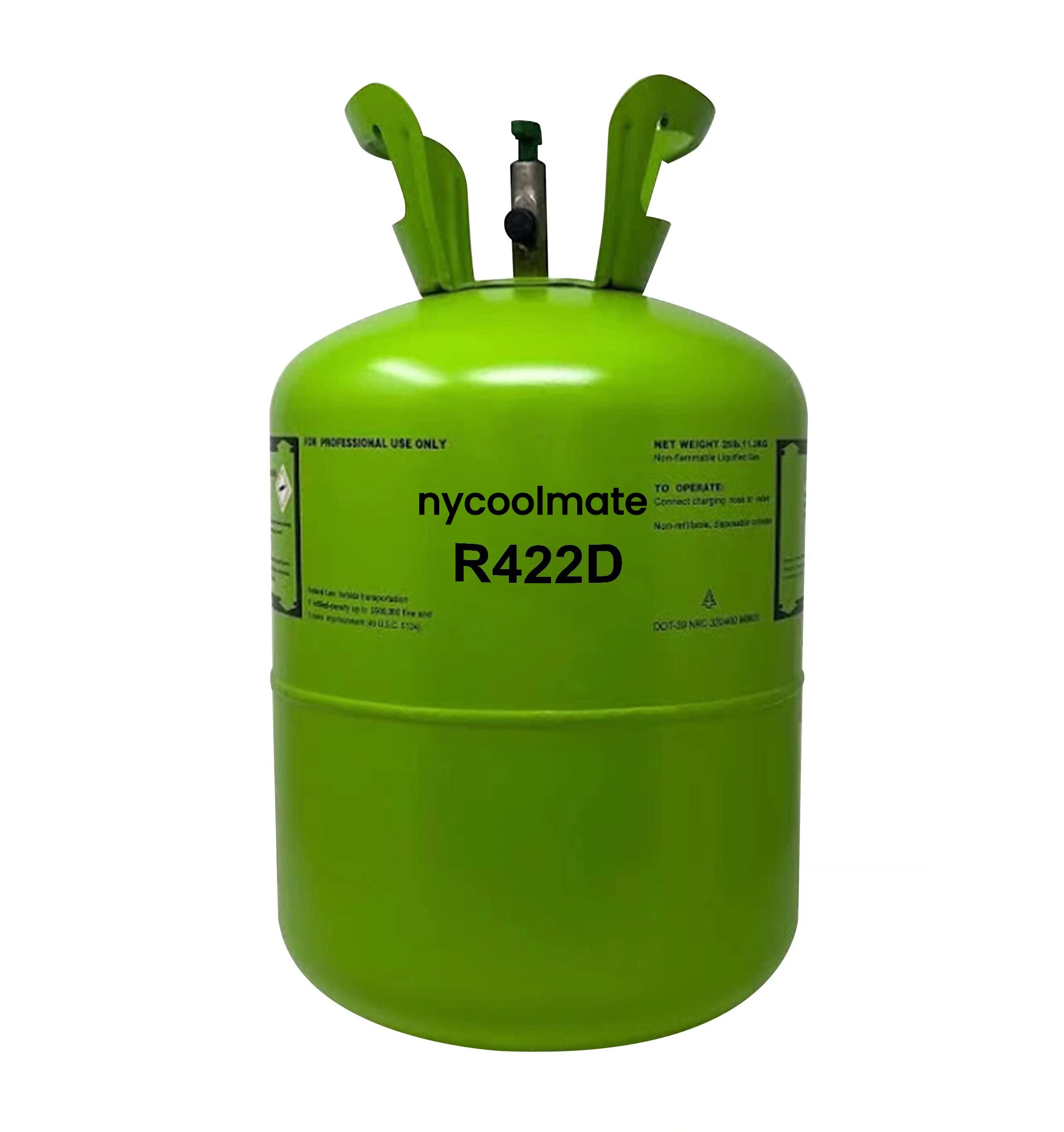

HFC-R422D Refrigerant (High-Capacity R22 Replacement Solution)
HFC-R422D is a non-ozone depleting HFC blend specifically formulated as a high-capacity retrofit solution for R22 in commercial refrigeration systems. With zero ODP (Ozone Depletion Potential) and a GWP of 2,729, it provides an environmentally responsible alternative while delivering 5-10% higher cooling capacity compared to R22 in most medium-temperature applications.
Key Technical Advantages:
Enhanced cooling capacity reduces compressor runtime and energy consumption
Near-azeotropic behavior (<3°C glide) ensures stable system operation
Direct drop-in compatibility with most R22 systems using POE oil
Non-flammable formulation (ASHRAE A1 safety classification)
Wide operating range (-30°C to +10°C evaporating temperature)
Key Specifications:
| Parameter | Specification |
| Molecular Weight | 109.9 |
| Boiling Point (1atm,°F) | -45.8 |
| Critical Temperature (°F) | 175.2 |
| Critical Pressure (psia) | 565.64 |
| Purity % ≥ | 99.8 |
| Moisture ppm ≤ | 10 |
| Acidity ppm ≤ | 1 |
| Vapor Residue ppm ≤ | 100 |
| Ozone Depletion Potential | 0 |
| Global Warming Potential | 2729 |
Industry-Standard Applications:
Supermarket refrigeration systems (display cases, walk-in coolers)
Commercial cold storage facilities
R22 retrofit applications (direct replacement)
Industrial process cooling systems
Transport refrigeration units
