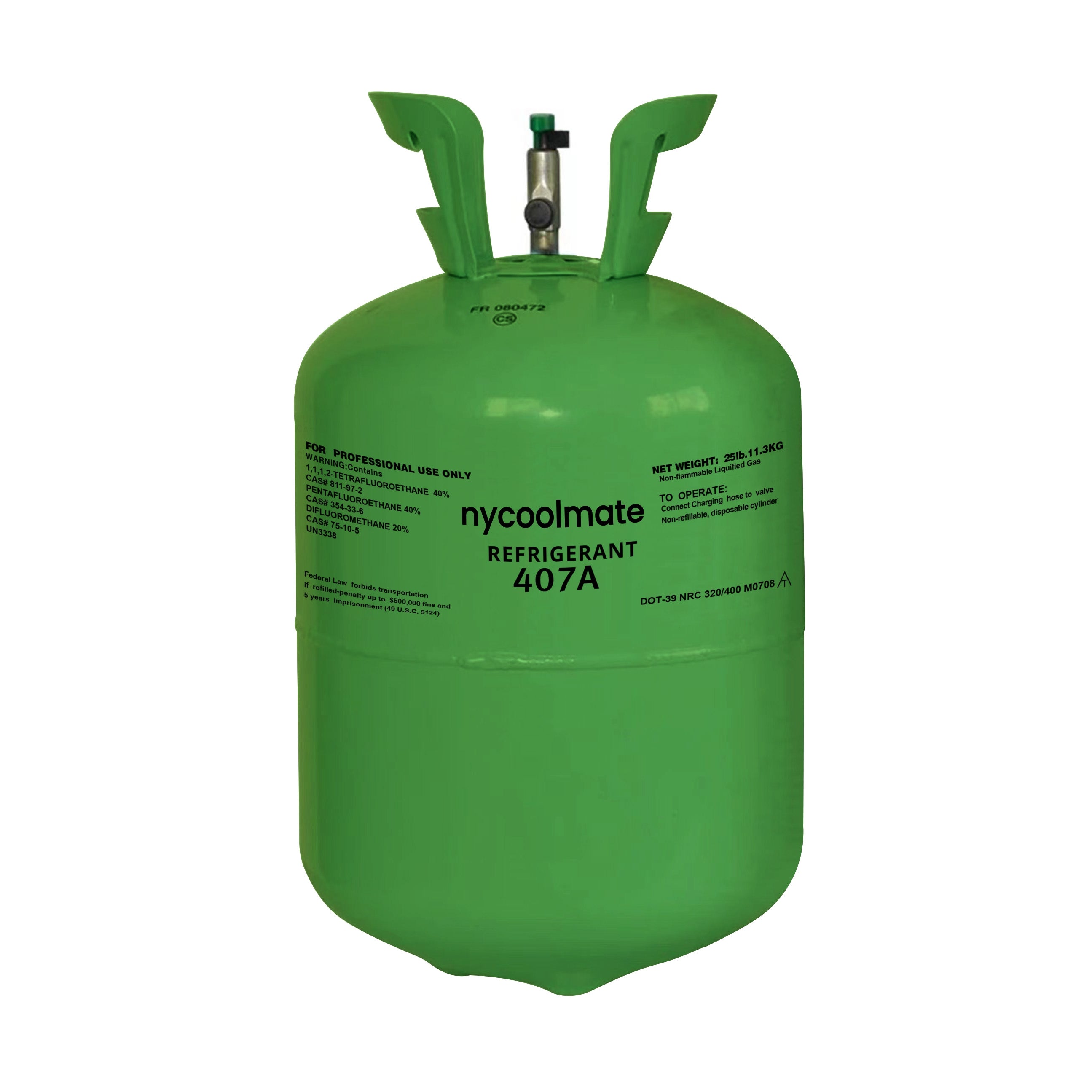

HFC-R407A Refrigerant (Low-GWP Retrofit Solution for R404A/R22)
HFC-R407A is a near-azeotropic HFC blend (R32/R125/R134a) designed as a low-glide, drop-in replacement for R404A and R22 in medium-temperature refrigeration systems. With zero ODP and a 30% reduced GWP (GWP≈2100) versus R404A, it complies with global phasedown regulations while maintaining comparable cooling capacity and operational performance.
Key Technical Advantages:
Optimized temperature glide (<5°C) minimizes system adjustment requirements
Near-identical operating pressure to R404A simplifies retrofit process
POE oil compatibility eliminates oil change requirements in most conversions
Non-flammable (ASHRAE A1 classification) for unrestricted application
Key Specifications:
| Parameter | Specification |
| Molecular Weight | 90.1 |
| Boiling Point (1atm,°F) | -49.9 |
| Critical Temperature (°F) | 180.1 |
| Critical Pressure (psia) | 658.6 |
| Purity % ≥ | 99.8 |
| Moisture ppm ≤ | 10 |
| Acidity ppm ≤ | 1 |
| Vapor Residue ppm ≤ | 100 |
| Ozone Depletion Potential | 0 |
| Global Warming Potential | 2110 |
Industry-Standard Applications:
Medium-temperature commercial refrigeration (supermarket cases, walk-in coolers)
Retrofitted R404A/R22 systems (direct drop-in per AHRI Guidelines)
Industrial process cooling
Transport refrigeration units
Ice machines and cold storage units
